产品中心 > 塑料防水接线盒 > tibox塑料防水盒

TJ系列-塑料盒（螺栓形）

TJ系列-塑料盒（螺栓形）

  • 型号规格

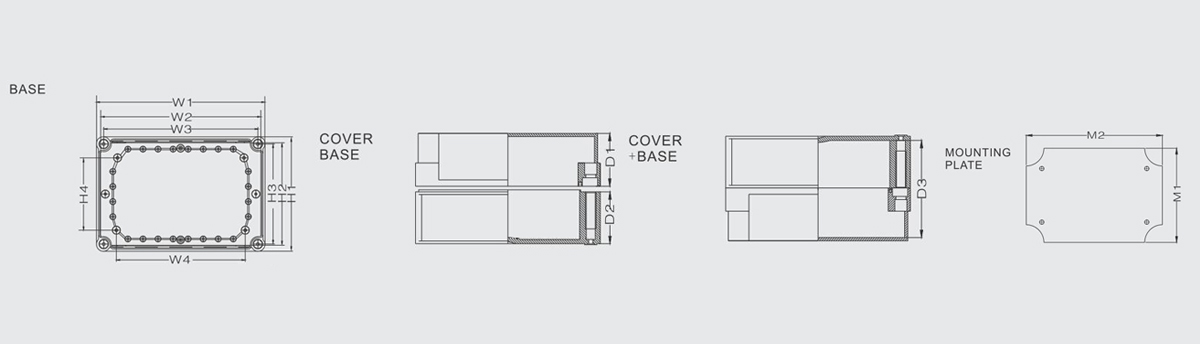

  • 尺寸大小

  • 适用配件

  • 行业应用

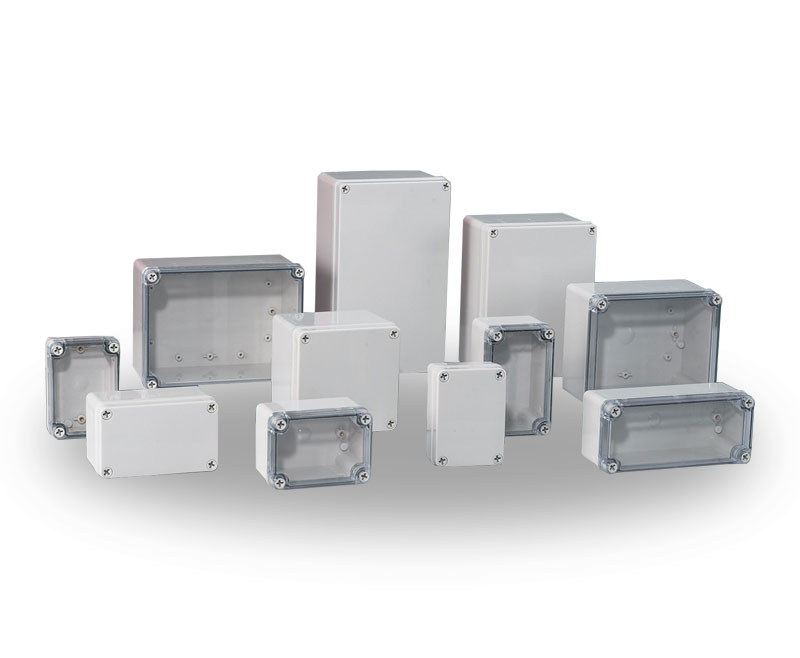

产品特点

有极好的绝缘性能，抗化学腐蚀和抗机械挤压的性能。达到高要求的lP66防护等级，所有的箱体都防尘、防水、抗800高温。采用ABS、PC等材料制成，外形美观、性能坚固。产品适用于小型终端机、按钮盒、信号机、继电器、计量器、通信用接线盒等设备

型号规格

尺寸 产品型号 内板型号 金属内板规格
WHD 盖：灰色ABS
盒体：灰色ABS		 盖：透明PC
盒体：灰色ABS		 盖：灰色PC
盒体：灰色PC		 盖：透明PC
盒体：灰色PC		 塑料 金属 M1 M2
200x300x105 TJ-AG-2030 TJ-AT-2030 TJ-PG-2030 TJ-PT-2030 TJ-2030P TJ-2030 180 275
200x 250 x100 TJ-AG-2025 TJ-AT-2025 TJ-PG-2025 TJ-PT-2025 TJ-2025P TJ-2025 180 228
200x200x160 TJ-AG-2020-2 TJ-AT-2020-2 TJ-PG-2020-2 TJ-PT-2020-2 TJ-2020P TJ-2020 185 185
200x 200 x130 TJ-AG-2020 TJ-AT-2020 TJ-PG-2020 TJ-PT-2020 TJ-2020P TJ-2020 185 185
200x200x125 TJ-AG-2020-1 TJ-AT-2020-1 TJ-PG-2020-1 TJ-PT-2020-1 TJ-2020P TJ-2020 185 185
200x200x95 TJ-AG-2020-S TJ-AT-2020-S TJ-PG-2020-S TJ-PT-2020-S TJ-2020P TJ-2020 185 185
180x250 x 100 TJ-AG-1825 TJ-AT-1825 TJ-PG-1825 TJ-PT-1825 TJ-1825 160 230
175 x 250 x100 TJ-AG-1725-1 TJ-AT-1725-1 TJ-PG-1725-1 TJ-PT-1725-1 TJ-1725P TJ-1725 155 230
175 x 250 x 75 TJ-AG-1725 TJ-AT-1725 TJ-PG-1725 TJ-PT-1725 TJ-1725P TJ-1725 155 230
175 x175 x100 TJ-AG-1717-1 TJ-AT-1717-1 TJ-PG-1717-1 TJ-PT-1717-1 TJ-1717P TJ-1717 159 159
175 x175 x 75 TJ-AG-1717 TJ-AT-1717 TJ-PG-1717 TJ-PT-1717 TJ-1717P TJ-1717 159 159
150x250x160 TJ-AG-1525-3 TJ-AT-1525-3 TJ-PG-1525-3 TJ-PT-1525-3 TJ-1525P TJ-1525 135 235
150 x 250 x130 TJ-AG-1525-2 TJ-AT-1525-2 TJ-PG-1525-2 TJ-PT-1525-2 TJ-1525P TJ-1525 135 235
150x 250 x130 TJ-AG-1525-1 TJ-AT-1525-1 TJ-PG-1525-1 TJ-PT-1525-1 TJ-1525P TJ-1525 135 235
150x 250 x100 TJ-AG-1525 TJ-AT-1525 TJ-PG-1525 TJ-PT-1525 TJ-1525P TJ-1525 135 235
150x200x160 TJ-AG-1520-3 TJ-AT-1520-3 TJ-PG-1520-3 TJ-PT-1520-3 TJ-1520P TJ-1520 136 185
150x200 x130 TJ-AG-1520-2 TJ-AT-1520-2 TJ-PG-1520-2 TJ-PT-1520-2 TJ-1520P TJ-1520 136 185
150x 200 x130 TJ-AG-1520-1 TJ-AT-1520-1 TJ-PG-1520-1 TJ-PT-1520-1 TJ-1520P TJ-1520 136 185
150x200x100 TJ-AG-1520 TJ AT-1520 TJ-PG-1520 TJ-PT-1520 TJ-1520P TJ-1520 136 185
150x200 x 75 TJ-AG-1520-S TJ-AT-1520-S TJ-PG-1520-S TJ-PT-1520-S TJ-1520P TJ-1520 136 185
140x 230 x95 FJ-AG-1423 TJ-AT-1423 TJ-PG-1423 TJ-PT-1423 TJ-1423P TJ-1423 125 215
140x 170 x 95 TJ-AG-1417 TJ-AT-1417 TJ-PG-1417 TJ-PT-1417 TJ-1417P TJ-1417 127 154
120x220x85 TJ-AG-1222 TJ-AT-1222 TJ-PG-1222 TJ-PT-1222 TJ-1222P TJ-1222 95 175
120x 200 x 75 TJ-AG-1220 TJ-AT-1220 TJ-PG-1220 TJ-PT-1220 TJ-1220P TJ-1220 95 175
125 x 175 x100 TJ-AG-1217-1 TJ-AT 1217-1 TJ-PG-1217-1 TJ-PT-1217-1 TJ-1217P TJ-1217 112 162
125 x175 x 75 TJ-AG-1217 TJ-AT-1217 TJ-PG-1217 TJ-PT-1217 TJ-1217P TJ-1217 112 162
125 x125 x100 TJ-AG-1212 TJ-AT-1212 TJ-PG-1212 TJ-PT-1212 TJ-1212P TJ-1212 112 112
125x 125 x 75 TJ-AG-1212-S TJ-AT-1212-S TJ-PG-1212-S TJ-PT-1212-S TJ-1212P TJ-1212 112 112
110x180x105 TJ-AG-1118-1 TJ-AT-1118-1 TJ-PG-1118-1 TJ-PT-111B-1 TJ-1118P TJ-1118 98 168
110x180x90 TJ-AG-1118 TJ-AT-1118 TJ-PG-1118 TJ-PT-1118 FJ-1118P TJ-1118 98 108
100x 100x100 TJ-AG-1010-1 TJ-AT-1010-1 TJ-PG-1010-1 TJ-PT-1010-1 TJ-1010P TJ-1010 80 80
100x 100x75 TJ-AG-1010 TJ-AT- 1010 TJ-PG-1010 TJ-PT-1010 TJ-1010P TJ-1010 80 80
80X250x100 TJ-AG-0825-2 TJ-AT-0825-2 TJ-PG-0825-2 TJ-PT-0825-2 TJ-0825P TJ-0825 67 237
80x250x85 TJ-AG-0825-1 TJ-AT-0825-1 TJ-PG-0825-1 TJ-PT-0825-1 TJ-0825P TJ-0825 67 237
80x250x70 TJ-AG-0825 TJ-AT-0825 TJ-PG-0825 TJ-PT-0825 TJ-0825P TJ-0825 67 237
80x220x70 TJ-AG-0822 TJ-AT-0822 TJ-PG 0822 TJ-PT-0822 TJ-0822P TJ-0822 67 209
80x180x85 TJ-AG-0818-1 TJ-AT-0818-1 TJ-PG-0818-1 TJ-PT-081B-1 FJ-0818P TJ-0818 70 170
80 x 180x70 TJ-AG-0818 TJ-AT-0818 TJ-PG-0816 TJ-PT-0818 TJ-0818P TJ-0818 70 170
80x160x90 TJ-AG-0816 TJ-AT-0816 TJ-PG-0816 TJ-PT-0816 TJ-0816P TJ-0816 67 151
80x160x55 TJ-AG-0816-S TJ-AT-0816-S TJ-PG-0816-S TJ-PT-0816-S TJ-0816P TJ-0816 67 151
80x 130x 85 TJ-AG-0813-1 TJ-AT-0813-1 TJ-PG-0813-1 TJ-PT-0813-1 TJ-0813P TJ-0813 67 117
80x130x70 TJ-AG-0813 TJ-AT-OB13 TJ-PG-0813 TJ-PT-0813 TJ-0813P TJ-0813 67 117
80x110x85 TJ-AG-0811-1 TJ-AT-0811-1 TJ-PG-0811-1 TJ PT-OB11-1 TJ-0811P TJ-0811 67 91
80x110x70 TJ-AG 0811 TJ-AT-0811 TJ-PG-0811 TJ-PT-OB11 TJ-0811P TJ-0811 67 91
80x110x60 TJ-AG-0811-1S TJ-AT-0811-1S TJ-PG-0811-1S TJ-PT-0811-1S TJ-0811P TJ-0811 67 91
80x110x45 TJ-AG-0811-S TJ-AT-0811-S TJ-PG-0811-S TJ-PT-0811-S TJ-0811P TJ-0811 67 91
80x80x85 TJ-AG-0808-1 TJ-AT-0808-1 TJ-PG-0808-1 TJ-PT-080B-1 TJ-0808P TJ-0808 65 65
80x80x60 TJ-AG-080B TJ-AT-0808 TJ-PG-0808 TJ-PT-0808 TJ-0808P TJ-0808 65 65
75x125x100 TJ-AG-0712-1 TJ-AT-0712-1 TJ-PG-0712-1 TJ-PT-0712-1 TJ-0712P TJ-0712 60 110
75x125x75 TJ-AG-0712 TJ-AT-0712 TJ-PG-0712 TJ PT-0712 TJ-0712P TJ-0712 60 110
65x95x55 TJ-AG-0609 TJ-AT-0609 TJ-PG-0609 TJ-PT-0609
50x65x55 TJ-AG-0506 TJ-AT-0506 TJ-PG-0506 TJ-PT-0506 TJ/0506 40 55
