◆紧凑
◆扁平设计
◆空气流动性好
◆温度安全保护开关
◆导轨安装

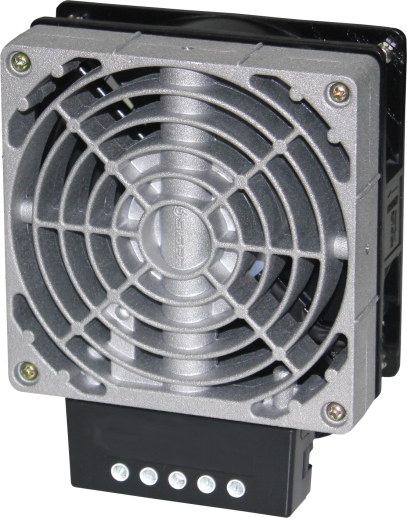

紧凑型高性能风机加热器可预防凝露的形成，该产品有不带风机式加热器，型号为THV 031，也有带风机式的，型号为THL 031。
TIBOX加热器的技术参数
THV 031 | Heater without fan(fan mounting kit included) |
THL031 | Heater with fan |
Heating element type | High performance cartridge |
Temperature safety cut-out | To protect against overheating in case of fan failure automatic reset |
Heater body | Die-cast aluminium(glass bead blasted) |
| Axial fan,ball bearing | Airflow see table， Service life 50,000h at 25℃（77°F） |
| Connection | 3-pole screw connector 2.5mm²,clamping torque 0.8Nm max. |
| Connection casing | Plastic according to UL94 V-0,black |
| Mounting | Clip for 35mm DIN rail,EN60715 |
| Fitting position | Vertical airflow(air outlet up) |
| Operating temperature | -45 to +70(-49 to +158)℃（°F） |
| Storage temperature | -45 to +70(-49 to +158)℃（°F） |
| Protection type/Prothection class | IP20/I(Earthed) |
| Connection(Axial fan) | 2-pole screw connector 2.5mm²（L2/N2） |
产品订货号

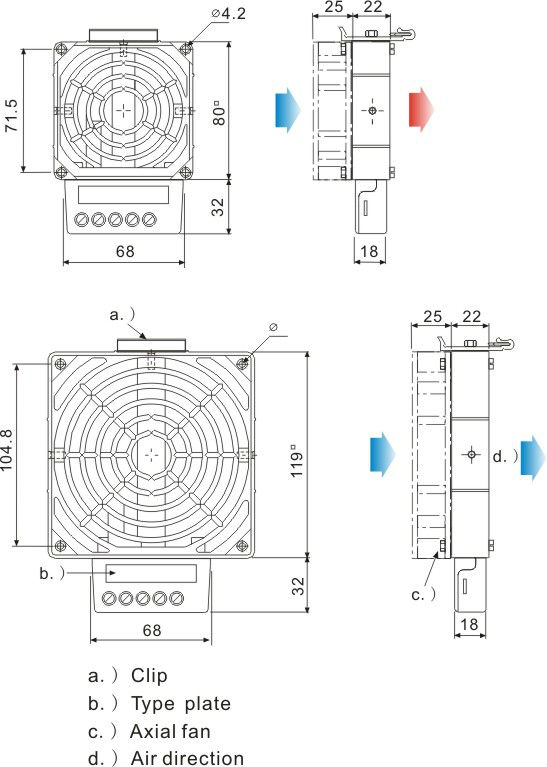

订货号 230VAC,50/60HZ | 订货号 120VAC,50/60HZ | 加热功率（W） | 预保险丝（T）230VAC | 预保险丝（T）120VAC | 小气流，自由流动 | 尺寸（mm） | 重量（KG） |
| THV031000 | THV031009 | 100 | 1.0A | 1.4A | / | 80*112*22 | 0.4 |
| THV031010 | THV031019 | 150 | 1.25A | 2A | / | 80*112*22 | 0.4 |
| THV031100 | THV031109 | 200 | 1.4A | 2.5A | / | 119*151*22 | 0.5 |
| THV031110 | THV031119 | 300 | 2A | 4A | / | 119*151*22 | 0.5 |
| THV031120 | THV031129 | 400 | 4A | 5A | / | 119*151*22 | 0.5 |
| THL031000 | THL031029 | 100 | 1.0A | 1.4A | 35m³/h | 80*112*47 | 0.6 |
| THL031010 | THL031039 | 150 | 1.25A | 2A | 35m³/h | 80*112*47 | 0.6 |
| THL031100 | THL031139 | 200 | 1.4A | 2.5A | 108m³/h | 119*151*47 | 0.9 |
| THL031110 | THL031149 | 300 | 2A | 4A | 108m³/h | 119*151*47 | 0.9 |
| THL031120 | THL031159 | 400 | 4A | 5A | 108m³/h | 119*151*47 | 0.9 |
